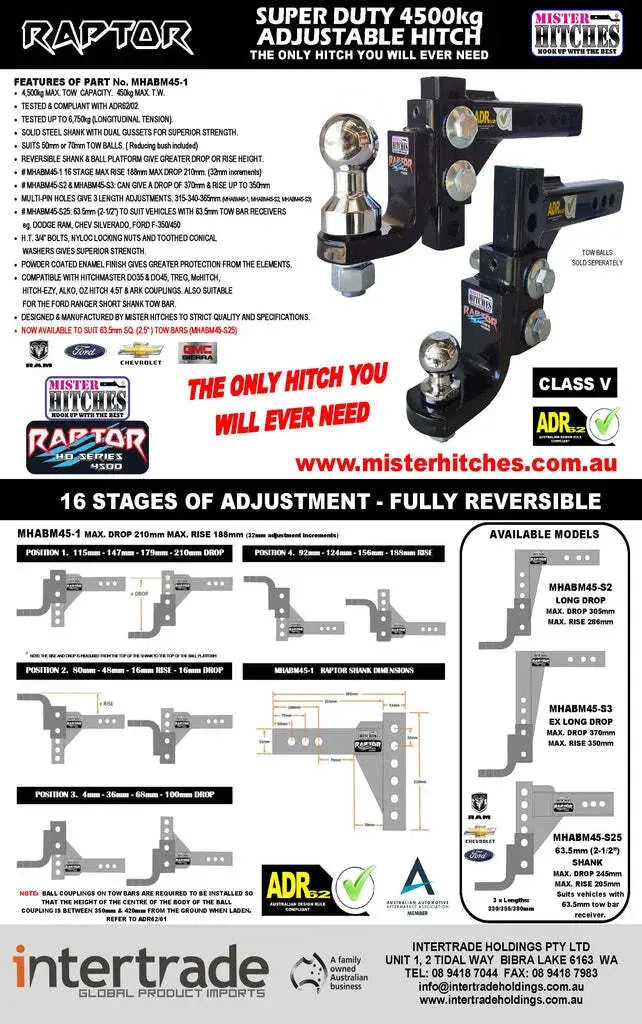

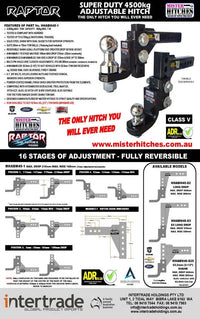

· 4,500kg MAX. TOW CAPACITY. 450kg MAX. T.W.
· TESTED & COMPLIANT WITH ADR62/02.
· TESTED UP TO 6,750kg (LONGITUDINAL TENSION).

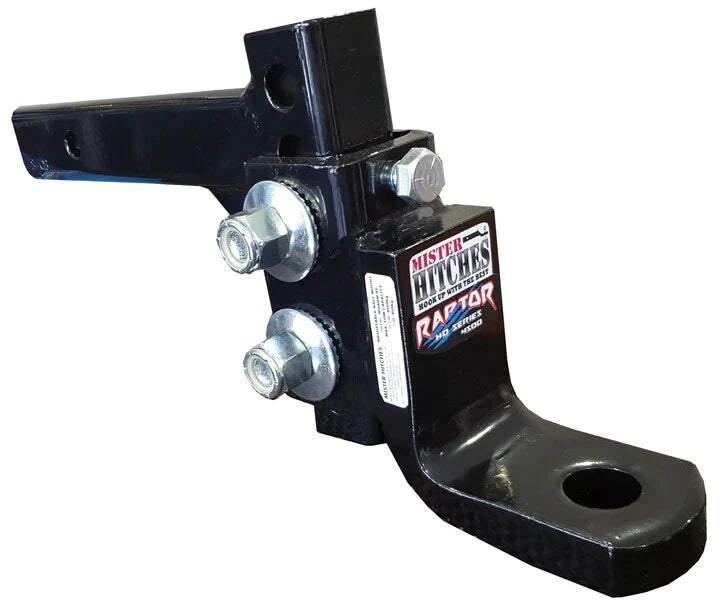

· SOLID STEEL SHANK WITH DUAL GUSSETS FOR SUPERIOR STRENGTH.
A 32mm to 22mm REDUCING BUSH IS SUPPLIED WITH THIS PRODUCT
· SUITS 50mm(D035) OR 70mm (D045) TOW BALLS OR PINS.
· REVERSIBLE SHANK & BALL PLATFORM GIVE GREATER DROP OR RISE HEIGHT.

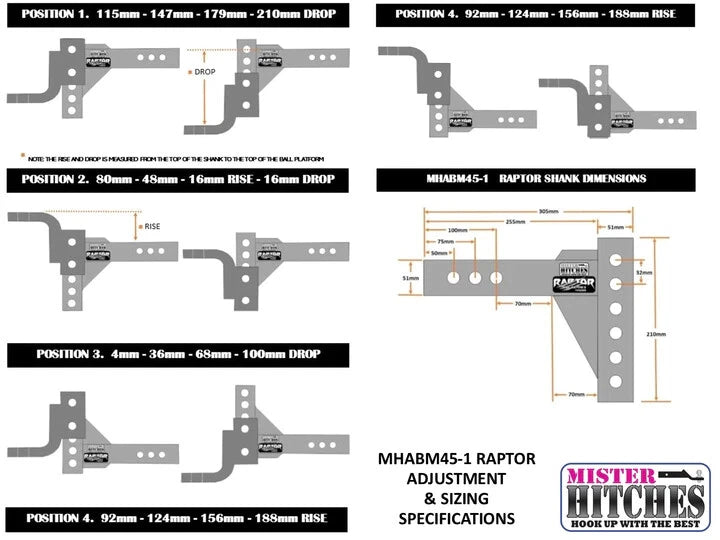

· 16 STAGE ADJUSTMENTS MAX RISE 188mm MAX DROP 210mm. (32mm increments)
· OPTIONAL SHANKS CAN GIVE A DROP OF 370mm & RISE UP TO 350mm
· MULTI-PIN HOLES GIVE 3 LENGTH ADJUSTMENTS. 315-340-365mm.
· H.T. 3/4” BOLTS, NYLOC LOCKING NUTS AND TOOTHED CONICAL WASHERS GIVES SUPERIOR STRENGTH.
· POWDER COATED ENAMEL FINISH GIVES GREATER PROTECTION FROM THE ELEMENTS.
· COMPATIBLE WITH HITCHMASTER DO35 & DO45, TREG, McHITCH, ALKO, OZ HITCH 4.5T & ARK COUPLINGS. ALSO SUITABLE FOR THE FORD RANGER SHORT SHANK TOW BAR.
· MANUFACTURED TO MISTER HITCHES STRICT QUALITY AND SPECIFICATIONS.
PART NUMBER: MHABM45-1
Tow Balls not included
